Maximum reach
TMF-4-L is designed for heavy-duty industrial robots and long production stations, including body-in-white, heavy handling, welding and processing cells.
Robotic 7th Axis
TMF-4-L
Dedicated to Body in White
The TMF-4-L linear axis from Güdel extends the working range of heavy industrial robots up to 100 meters. It moves a wide range of robots weighing up to 3,000 kg including payload, or static loads of over 5,300 kg, with multiple independent carriages for maximum flexibility.
100 mMaximum working range extension
3,000 kgRobot weight including payload
>5,300 kgStatic load capacity
TrackMotion Floor
Heavy-duty TrackMotion Floor
Flexible carriage layouts
Multiple independent carriages can be configured around process takt and station layout, allowing one rail to support several robots or process zones.
Precise and safe automation
The 7th axis automates processes precisely and safely, making heavy-duty applications future-proof with a scalable system architecture.
Selection
Downloads and selection
Download TMF-4-L files or use the TrackMotion Linear Track Selector.
Product details
Functional features

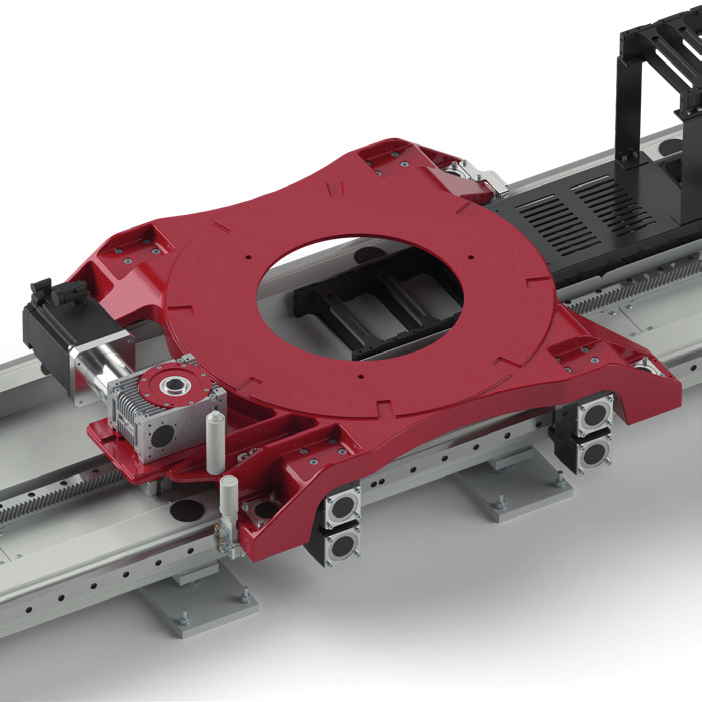

Carrier
Monolithic cast construction with pre-drilled mounting holes, compatible with all major industrial robots.

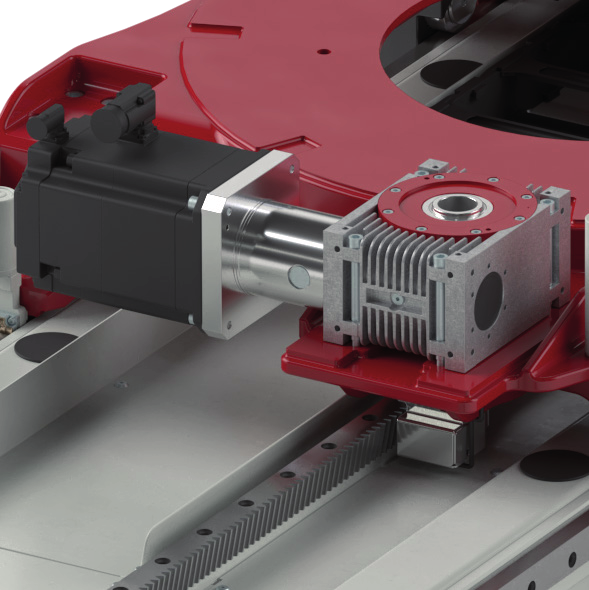

Drive
High-performance angle gearbox reducer with aluminum housing for enhanced heat dissipation.

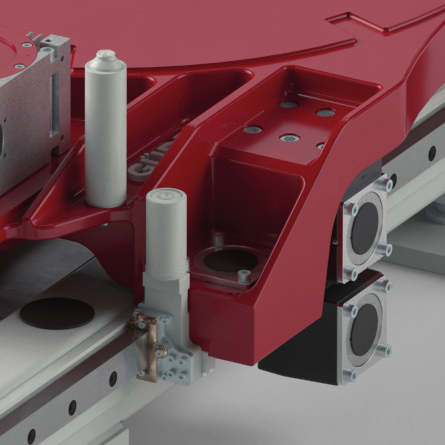

Lubrication
Three lubrication pumps for localized lubrication, fewer lines and simple maintenance.

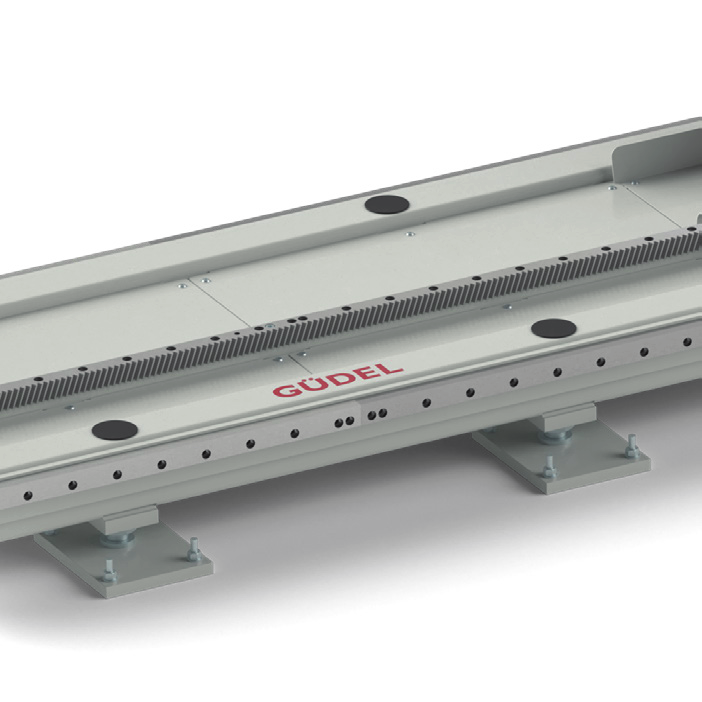

Foundation
Leveling anchor bolt kit provides solid and stable mounting for the track beam without welding.

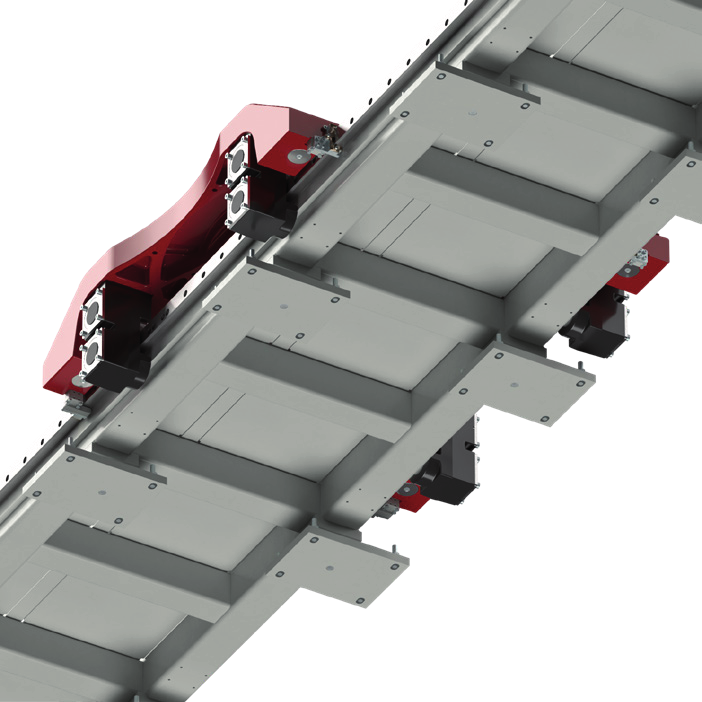

Base
Steel tube and reinforcement rib structure provides a solid and stable track for robot movement.
Robots
Compatible robots
TMF-4-L supports major heavy-duty robot families and can be adapted to other robot models as needed.
KUKA
- Fortec 2
- Quantec 1
- Quantec 2
FANUC
- R-2000
- M-900iB / 280
- M-900iB / 280L
- M-900iB / 330L
- M-900iB / 360E
ABB
- IRB67x0
- IRB7600
YASKAWA
- GP225
- GP250
- GP280
- GP280L
- GP360
Can be adapted to other robot models as needed.
Applications
Recommended applications
Transport and processing automation
Connect, position and process large body-in-white parts and similar workpieces.
View applicationLoading machine tools
One robot can serve several machines or processing cells along an extended rail.
View applicationSolutions for bonding components
Extend robot coverage for stable adhesive application and handling of large parts.
View applicationGüdel
Swiss automation since 1954
Engineered and made in Switzerland
Güdel has stood for the highest quality and reliability for over 70 years.
Intelligent and complete solutions
From individual components to complete automation solutions, everything from one single source.
Highest precision and maximum accuracy
In-house manufactured racks, pinions and gearboxes deliver maximum precision.
Transporting heavy loads over long distances
Market leader in moving loads of up to 3 tons over 100 meters.
Future-oriented with tradition
Durable products for sustainable efficiency, proven and tested over many years.
Global presence, local expertise
Approximately 20 locations with around 1,000 employees working for customers worldwide.
Güdel China
Discuss TMF-4-L
If you are evaluating robot model, track length, carriage count or site layout, use the inquiry form or online service entry.
